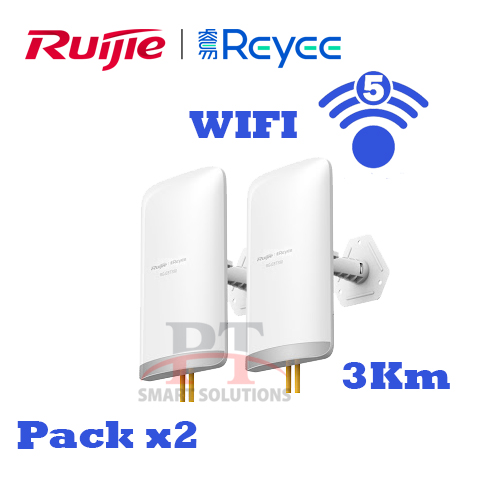

Ruijie Reyee 5GHz wireless bridge

Product Specification

Model

RG-EST350

Hardware Specifications

Chip

QCA9563+QCA9886

RAM/ Flash

512 MB/8 MB

Radio

Dual-stream single-band 2×2

Operating Band

802.11a/n/ac: 5.150～5.350GHz, 5.470~5.725GHz , 5.725～5.850GHz (country specific)

Antenna

Directional antennas, horizontal: 31°, vertical: 14°, gain: 15 dBi

Bridging Distance

5 km (recommended)

Spatial Streams

Two streams

Maximum Throughput

Up to 867 Mbps at 5 GHz

Transmit Power

≤100 Mw(20 dBm) (adjustable)

Dimensions

230 mm(D)×132 mm(W)×48 mm(H) (Dimensions per device)
(Same size for the recorder-end and camera-end, H: height of the device edge excluding the mounting kits)

Weight

0.6 kg

Ports

Two 10/100/1000Base-T Ethernet ports, supports 24 VDC non-standard PoE power supply
One DC port, supports 12 VDC power supply

Hardware Button

1 reset button

Status Indicators

System indicator: 1
Port indicator: 2
Bridge signal strength indicators: 3

Power Supply

Support 12 VDC power supply and 24 VDC non-standard PoE power supply

Power Consumption

<9 W

Environment

Operating temperature: -30°C to 65°C

Storage temperature: -40°C to 85°C

Operating humidity: 5% to 95% (non-condensing)

Storage humidity: 5% to 95% (non-condensing)

Installation

Wall-mounted/ Pole-mounted (hose clamp is provided)

IP Rating

IP65

Lightning Protection

4 KV

Radio Standard

EN300 328, EN301 893

Software Features

Automatic Bridging

Support
The recorder-end and camera-end are automatically paired for bridging by default

One-to-many Bridging

One-to-three bridging is recommended for the wireless coverage scope at an angle of 31° to the horizontal.

Device Configuration and Management

Support App/Web configuration

QR Code Login

Users can log in to the device configuration interface by scanning the QR code of the device using the app

Self-healing

Automatic restart upon equipment failure

Automatic Channel Adjustment

Automatically adjust the channel upon po

รับประกัน

3 ปี
