24-Port Gigabit Smart Switch

Product Specification

Overview

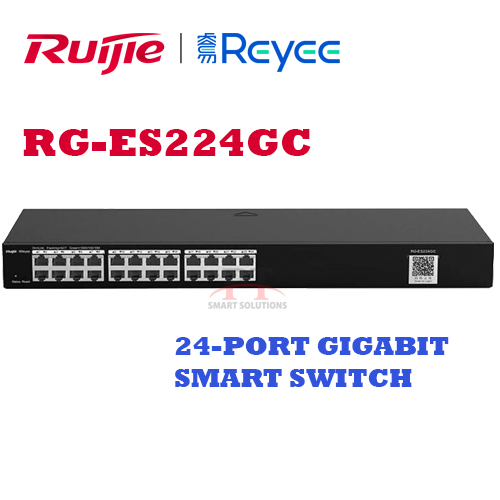

Reyee RG-ES224GC Cloud Managed Smart Switch for IP surveillance 24 Port Gigabit

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Ports

24 10/100/1000 Base-T Ports

Maximum output power per PoE port

-

Maximum PoE output power per switch

-

Switching capacity

48Gbps

Packet forwarding rate

36Mpps

Surge protection

Common mode: 6KV

Electrostatic discharge

Air discharge: 6KV
Contact discharge: 4KV

Power consumption

≤14W

Power supply

Built-in power supply

Dimensions (W x D x H)

440x165x44mm

MTBF

>200K

Operating temperature

0 to 40°C

Storage temperature

-40~70ºC

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH

MAC capacity

8K

Static MAC address

16

VLAN

Support 802.1Q VLAN

Port management

Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration

Security

Support broadcast storm suppression, port speed limit, port isolation

ประกัน

3 ปี
