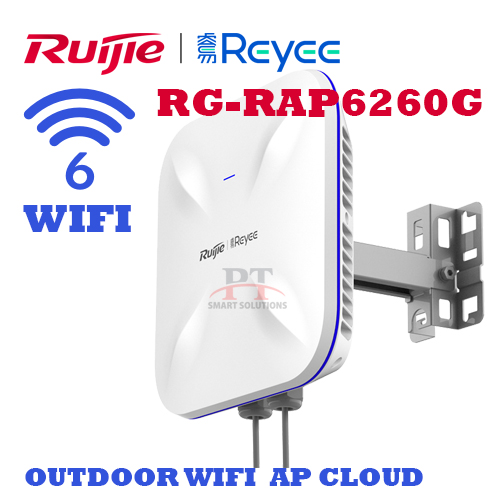

Ruijie Reyee Outdoor Wifi 6 PoE Access Point

Product Specification

Overview

Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point, มาตรฐาน WIFI-6 1775Mbps กันน้ำ กันฝุ่นมาตรฐาน  IP68, Manage ผ่าน Ruijie Cloud, Standalone

พร้อม Ruijie Cloud License แบบ Lifetime

Model

RG-RAP2260(G)

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n/ax : 2.4G - 2.4835GHz
802.11a/n/ac/ax  : 5G : 5.150 - 5.350GHz, 5.725 - 5.850GHz (ountry specific)

Antenna

Internal antennas (2.4G: 3dBi, 5G: 3dBi)

Spatial Streams

2.4G 2x2 MIMO
5G 2x2 MIMO

Max Throughput

Up to 574Mbps at 2.4G
Up to 1201Mbps at 5G
1.775Gbp per AP

Modulation

OFDM:BPSK@6/9Mbps, QPSK@12/18Mbps,16QAM@24Mbps, 64QAM@48/54Mbps

DSSS:DBPSK@1Mbps, DQPSK@2Mbps and CCK@5.5/11Mbps

MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

OFDMA

Receive Sensitivity

11b : -96dBm (1Mbps) , -93dBm (5Mbps) , -89dBm (11Mbps)

11a/g : -91dBm (6Mbps) , -85dBm (24Mbps),-80dBm (36Mbps) , -74dBm (54Mbps)

11n : -90dBm (MCS0) , -70dBm (MCS7) , -89dBm (MCS8) , -68dBm (MCS15)

11ac : 20MHz : -88dBm (MCS0) , -63dBm (MCS9)

11ac : 40MHz : -85dBm (MCS0) , -60dBm (MCS9)

11ac : 80MHz : -85dBm (MCS0) , 60dBm (MCS9)

11ax : 80MHz : -82dBm (MCS0) , -57dBm (MCS9), -52dBm (MCS11)

Maximum Transmit Power

5.725 - 5.850GHz : ≤20dBm (EIRP)
5.150 - 5.250GHz : ≤20dBm (EIRP)
2.4 - 2.4835GHz : ≤20dBm (EIRP)

Adjustable Power

1dBm

Dimensions

194mm×194mm×35mm (excluding mounting kits)

Weight

0.56kg (excluding mounting kits)

Service Ports

2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE

Management Port

NA

LED Indicator

Single indicator (green light)

Power Supply

Local power supply, DC 12V/2A (Note: The power adapter is sold as an optional accessory)
802.3at PoE+

POE และ DC Adapter ไม่มีในชุด

Power Consumption

≤ 15.3W (เลือกใช้ POE 802.3at เท่านั้น กรณีที่ใช้ POE 802.3af อาจจะทำให้ไฟไม่พอ)

Environment

Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Operating humidity: 5%~95% (non-condensing)
Storage humidity: 5%~95% (non-condensing)

Installation

Ceiling/wall-mountable

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035

Vibration Standard

IEC61373

Radio Standard

EN300 328, EN301 893

MTBF

> 400000H

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 512
Recommended number of clients: 100
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management features

Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform

ประกัน

3 ปี
